DM9600

Description

DM9600 Conspicuity Marking Tape is a tough weather resistant product designed for rugged outdoor use.The material is intended for application as conspicuity marking on trucks and trailers.

Product Construction

DM9600 Conspicuity Marking tape is composed of cube corner (microprism) retroreflective elements integrally bonded to a flexible, smooth-surfaced tough and weather resistant UV stabilized polymeric film. The prism surfaces are coated with a vacuum deposition of aluminium to provide a mirror surface to the prism facets.The resulting material is not more than 0,20 mm thick, and comes with an aggressive high-tack pressure sensitive adhesive.The product is single layer, with no need for edge sealing.

Product Approved

DM9600 conspicuity marking tape is approved to Regulation ECE 104 Class C,the approve number as below:

White:104R-001051, Yellow:104R-001052, Red:104R-001053

Retroreflection

DM9600 conspicuity marking tape complies with the minimum reflectivity requirements of Regulation ECE 104 Class C. When illuminated with CIE standard illuminant A and measured with the provisions of CIE No. 54, the coefficient of retroreflection for DM9600 conspicuity marking tape shall be not less than the values in Table as below:

Colour

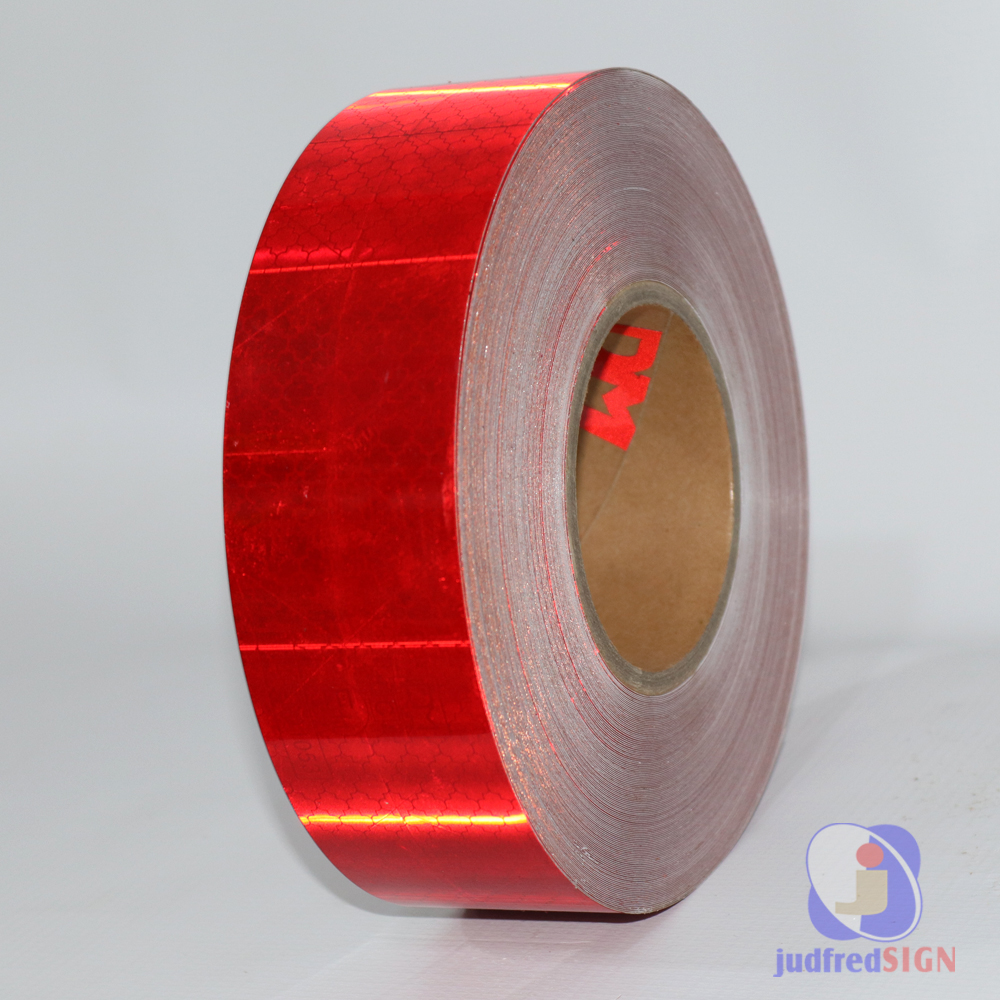

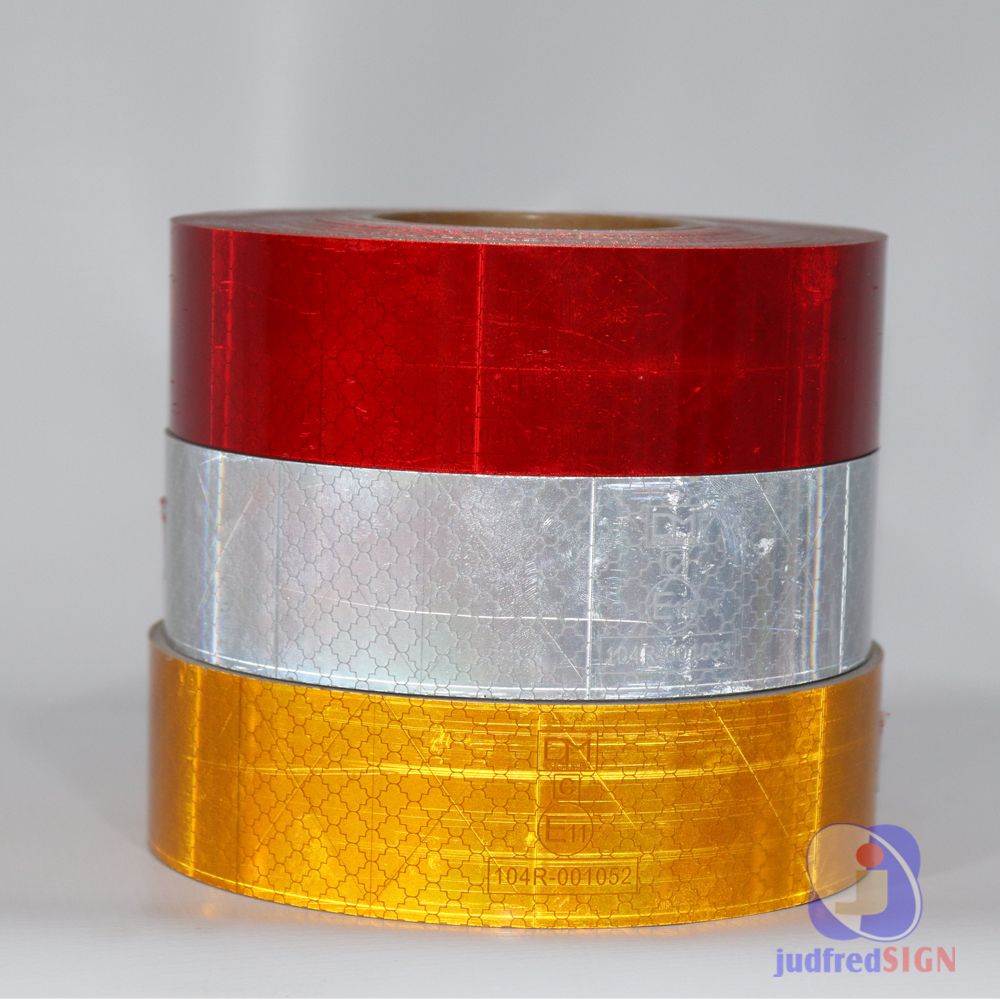

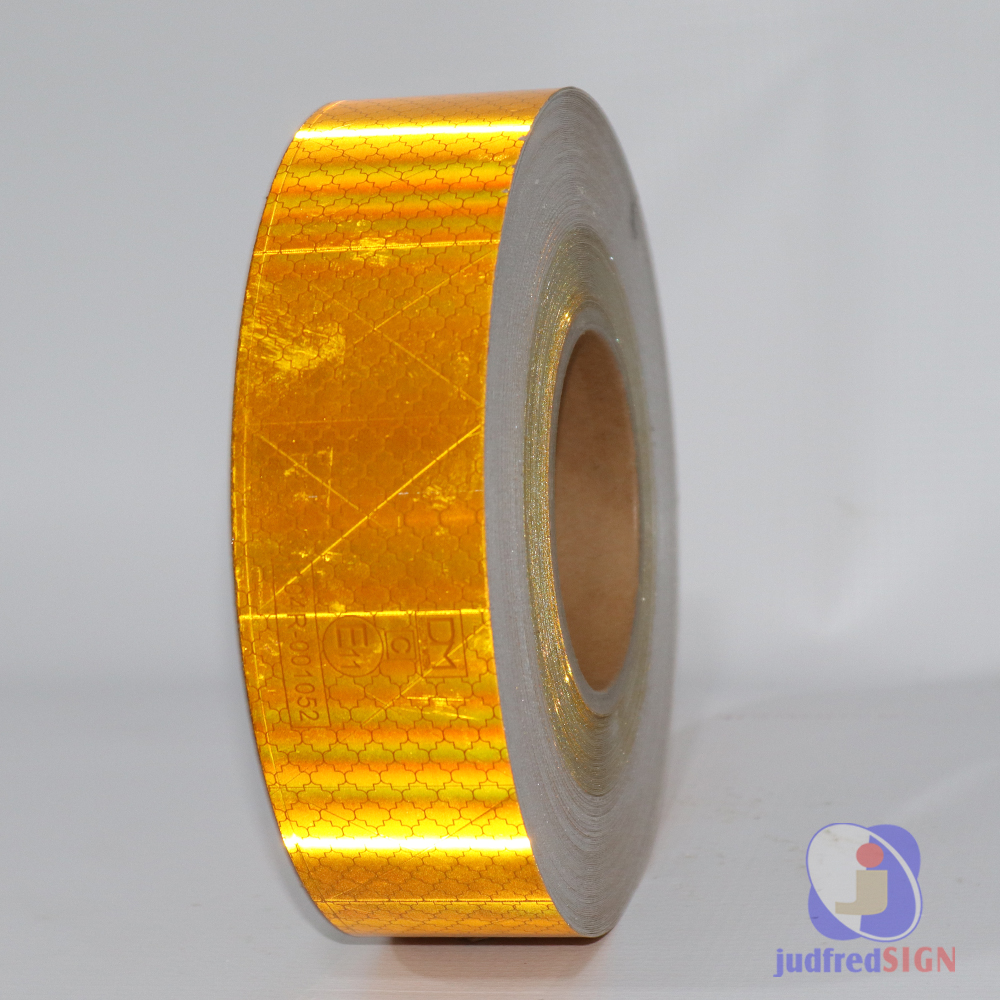

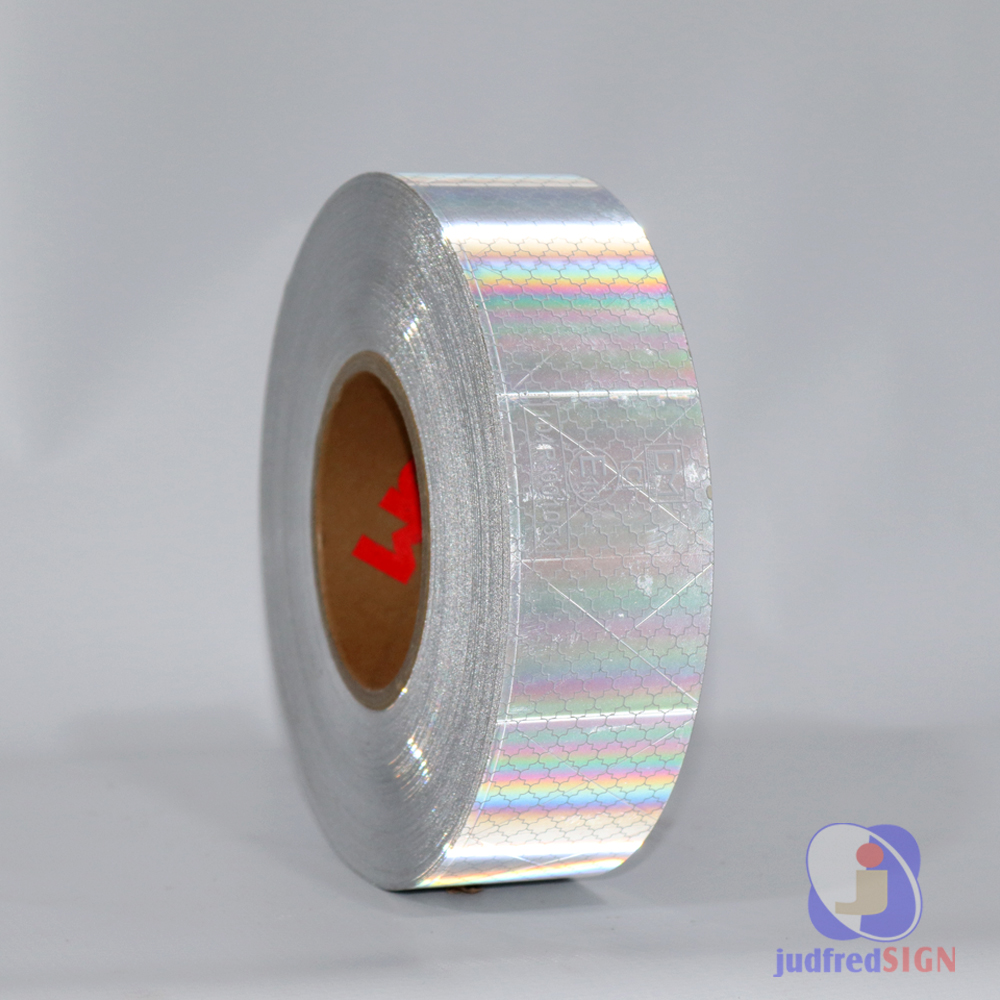

DM9600 conspicuity marking tape is available in yellow, white and red. The colours conform to the requirements of Regulation ECE 104.

Adhesive

The adhesive is protected by a release liner, which shall be removed by peeling, without soaking in water or other solvents.

A 25 mm strip shall provide a bond such that it shall support a 800 g weight for 5 minutes without the strip peeling for a distance of more than 50 mm when applied to a smooth aluminium surface as specified in the standard adhesion test.
